SVS SoundPath Ultra HDMI Cable
SVS SoundPath Ultra HDMI Cable






Performance Driven Engineering
Broad Compatibility
Works seamlessly with the latest audio video products and supports all legacy standards
- Supports HDMI versions 2.1 and 2.1a
- Backwards compatible with all previous HDMI versions
- HDMI ARC/eARC (Enhanced Audio Return Channel) Compatible
- Supports all surround sound formats, including: Dolby Atmos, DTS:X, and Auro 3D
- Supports pass-through of all HDR (High Dynamic Range) formats for clearer, deeper, more vivid colors: HDR10, 10+, Dolby Vision, HLG, and any prospective HDR formats
- Supports advanced gaming features such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
- Supports AMD® FreeSync™ on the Xbox Series X™, Xbox® Series S, Xbox One™ X, and PlayStation® 4 Pro consoles
- Supports SA‑CD, DVD‑Audio, DTS‑HD Master Audio™, Dolby TrueHD™, and other high definition audio standards
- Supports the 21:9 cinema aspect ratio
- Supports up to 32 audio channels and a 1536kHz audio sampling rate
- Supports Deep Color with up to 16‑bits per channel, including the Sony® x.v.Color™ standard
- Supports simultaneous delivery of dual video streams to multiple users on the same screen
Flawless Performance
Stunning video and sound quality for truly immersive experiences
- Up to 48 Gbps bandwidth capacity
- Compatible with 8K/60Hz and 4K/120Hz resolution/refresh rate combinations
- Compatible with resolutions up to 10K/60Hz (compressed mode)
- Supports 3D and Multiview Video
Tech Specs
CABLE MATERIALS OF CONSTRUCTION:
- 28AWG or 30AWG high purity OFC copper conductors
- Individual conductor HDPE Jackets insulate and protect each conductor
- Each pair of conductors has a dedicated drain conductor of high purity OFC copper
- Each Pair of conductors has two layers of dedicated aluminum alloy braided mylar insulation wrapped in an HDPE jacket
- Overall cable high purity OFC copper drain conductor
- Overall cable aluminum alloy braided mylar insulation wrapped in a durable and flexible HDPE jacket
- SVS premium cotton braided jacket – attractive and durable wrapping gives a premium touch and finish to a high-quality cable

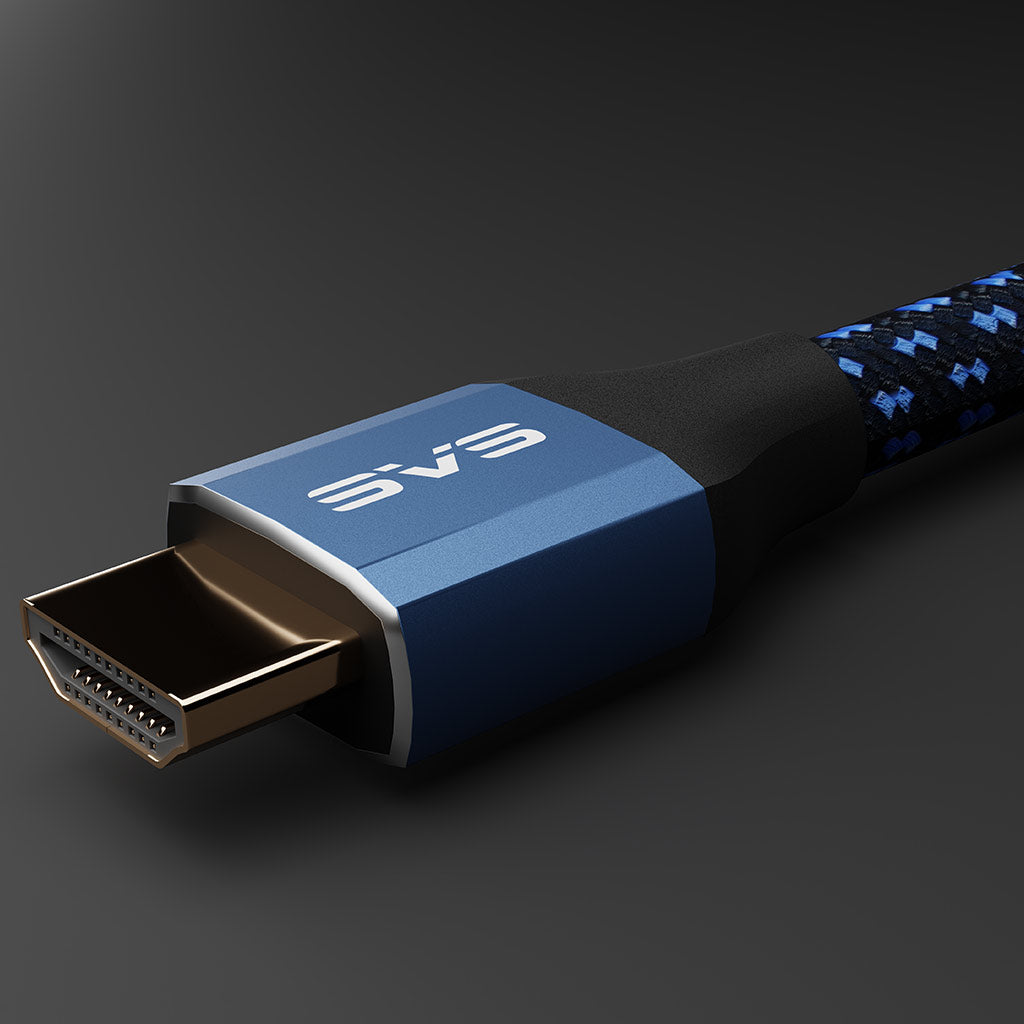

HDMI CONNECTOR – MATERIALS OF CONSTRUCTION:
- Precision soldered with high grade lead-free solder – Durable and consistent electrical contacts with consistent signal flow
- 24K gold plated contacts – effective electrical contact and signal flow
- Precision machined and anodized aircraft grade aluminum shell
Performance Properties:
Complete support for the HDMI.org 2.1 specification including:
- 48Gbps
- 8K at 60Hz
- 4K at 120Hz
- Resolutions up to 10K
- Dynamic HDR (High Dynamic Range) including HDR 10+ and Dolby Vision
- ARC and eARC (Audio Return Channel and Enhanced Audio Return Channel)
- Support for latest Audio Codecs including Dolby Atmos and DTS:X
- Ultra-low EMI (electro-magnetic interference)
- BT.2020 color spacing up to 16 bits
- QMS (Quick Media Switching)
- SVS SoundPath Ultra HDMI Cables are available in 1, 2 and 3 meter lengths.
“A very robust and well-made cable that not only passes fit and finish, but also performance. The 24K gold-plated connectors and OFC copper conductors backs the build quality and easily supports 4K or 8K resolution. Highly recommended!”
“A very robust and well-made cable that not only passes fit and finish, but also performance. The 24K gold-plated connectors and OFC copper conductors backs the build quality and easily supports 4K or 8K resolution. Highly recommended!”
